PythonX - the structural steel plasma cutting technology leader
  •    A Complete Fab Shop
       in a Single Machine
  •    Calculates Entire Cut Program
       Automatically by Reading TEKLA
       or Other CAD Detail File
  •    Conveyor Guides Beam
       Into Place, Plasma Torch
       Goes to Work
  •    Every Hole, Slot, Cope,
       Bevel, Notch, Piece Mark and
       Cutoff Made In One Pass
  •    Finished, Perfectly Fabricated
       Beams In Just A Few Minutes

The World's Most Productive Structural Steel Fabrication Machine

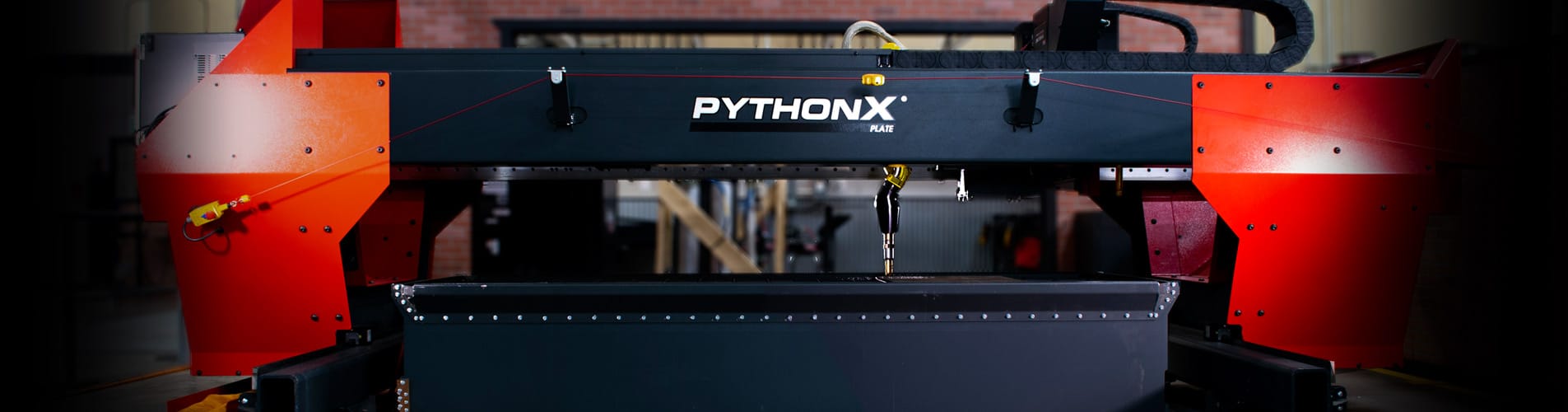

PythonX is the robotic CNC plasma cutting system that has revolutionized structural steel fabrication. More than a machine, PythonX has created a NEW STANDARD in the way you think about running a fabrication shop. It's the marriage of advanced CNC robotics to high-definition plasma cutting, equipped with software so sophisticated it programs cuts by itself. For many fab shops, it's now the only machine they use.



Traditional fabrication involves layout of the cuts, moving the beam from the drill line to the bandsaw to the coping station. It takes too much time, too much space and is prone to error.



PythonX solves those problems. You load the beam on the infeed conveyor and input a part file from TEKLA, SDS/2, StruCAD or other detailing software. PythonX calculates the cutting path and sequence, moves the beam into position, and starts making all the needed cuts and features. It starts at one end of the beam and works to the other end, making all the cuts in one pass. Compared to traditional machines, PythonX:



  • Uses Just 20% of the Floorspace
  • Needs Only 20% as Much Processing Time
  • Offers Complete Fabricating Capability for 20% of the Price
