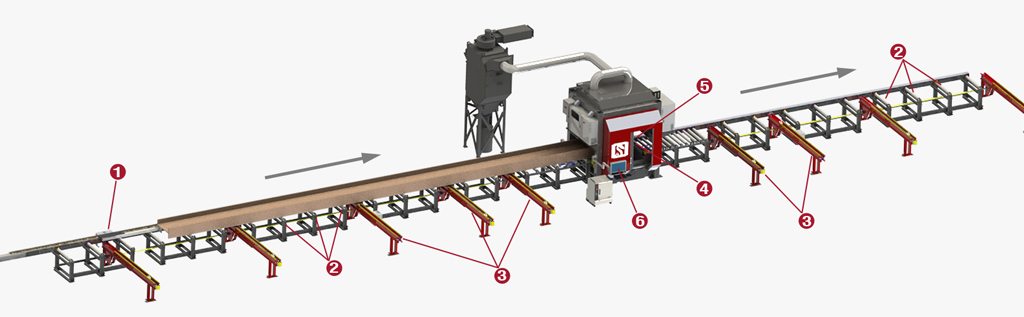

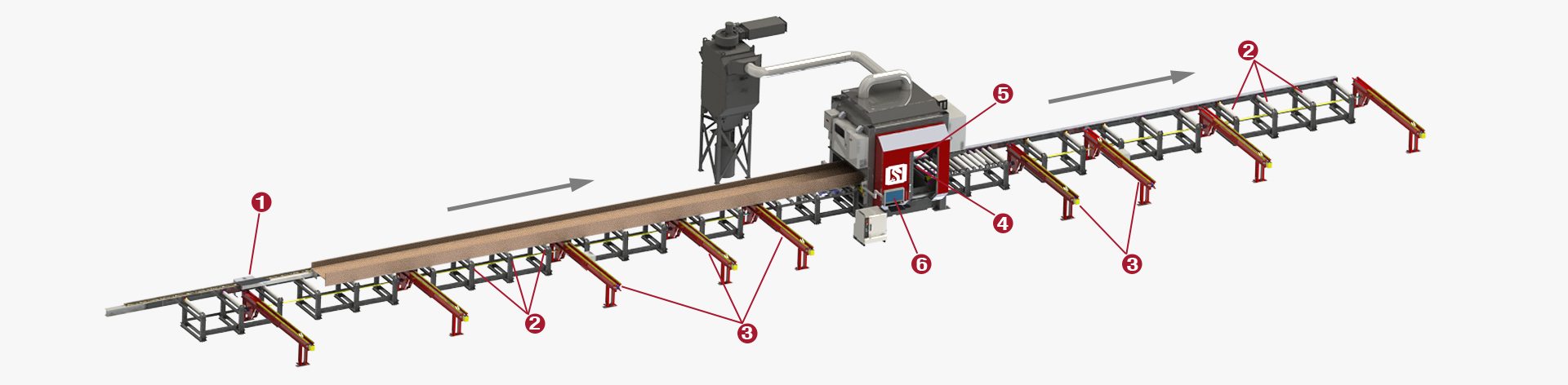

PythonX Fabrication System Layout

Measuring Cart

The measuring cart relays the exact position of the work piece to the robot.

  • More accurate than pinch rolls, which can slip
  • Measures and displays full length of the beam – not possible on pinch roll systems

Infeed/Outfeed Conveyors

Precision machined rollers with no flat spots for ultimate accuracy.

  • 4 in. (101.6mm) diameter on heavy duty frames
  • Built to last with oversized 7.5 hp motors – most others use 2.0 hp

Cross Transfers

Accumulate and transfer material for Infeed and Outfeed conveyors (optional feature).

  • Reduces material handling, increases output
  • Heavy duty motor and gear reducer controlled by variable frequency drive

High Definition Torch

High Definition Plasma technology aligns and focuses the plasma arc, improving arc stability and energy for more precise cutting.

  • Completely automatic gas and kerf control
  • PATENTED hole taper compensation and advanced bevel tuning

Multi-Axis Robotic Arm

Tuned twice for absolute best-in-class accuracy and least cut-path following error.

  • Complete with collision detection
  • Stronger, with a higher payload to minimize vibration and sway

NEW! Operator Control System

New features and capabilities let you get more done, more quickly and easily.

  • 24in (61 cm) HMI with intuitive touch screen
  • Ergonomic handles allow easy movement into the optimum position for any operator
